Niobium-Based High-Rate Safety Battery System
Battery Materials：NTO/LNMO NTO/NCM
Compared to current commercial anode materials (graphite, LTO), niobium-titanium (NTO) battery technology exhibits distinctive characteristics
High safety: High lithium intercalation potential prevents the formation of lithium dendrites, resulting in extremely excellent safety performance
High Rate Performance: The high-rate material can be charged to 80% in 4 minutes, with excellent fast-charging and fast-discharging performance
Long Cycle Life: High structural stability, achieving over 20,000 cycles—more than 3 times that of graphite anode materials
Wide Temperature Range: Operating within the range of -45℃ to 70℃, it is suitable for cold climates and delivers excellent performance under both high and low temperature conditions
High Power Output: Supporting high-intensity discharge at a rate of over 50C
Anode Material: Super Fast-Charge Niobium-Based NTO ( TiNb2O7 )
Ultra-Safe Anode High intercalation potential (>1.6V vs. Li/Li⁺), minimal SEI/Li dendrites
Excellent high-rate & low-temp performance Pseudocapacitive behavior, supports >10C, <-30°C
High volumetric energy density ~2x Graphite, ~3x LTO
Cathode Material: High-Voltage LNMO ( LiNi0.5Mn1.5O4 )
High voltage High voltage(~4.7V vs. Li/Li⁺), higher than LFP (3.2V) and NCM/NCA/LCO (3.8V)
Ultra-safe Cathode Stable spinel structure (like LFP)
Rate & low-temp performance 3D Li channels exhibit far superior low-temperature performance and rate capability compared to NCM/NCA (2D Li+ and LFP 1D Li+ channels)
Co-Free, Low-Ni, Mn-Rich Lower cost, greener process

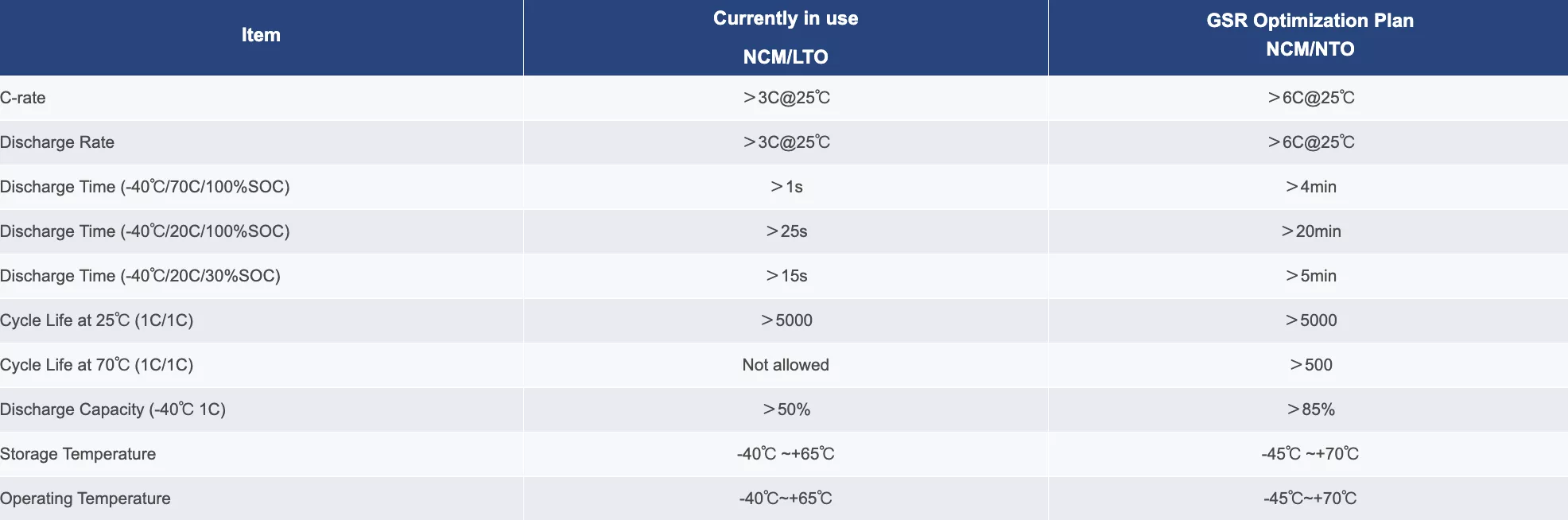

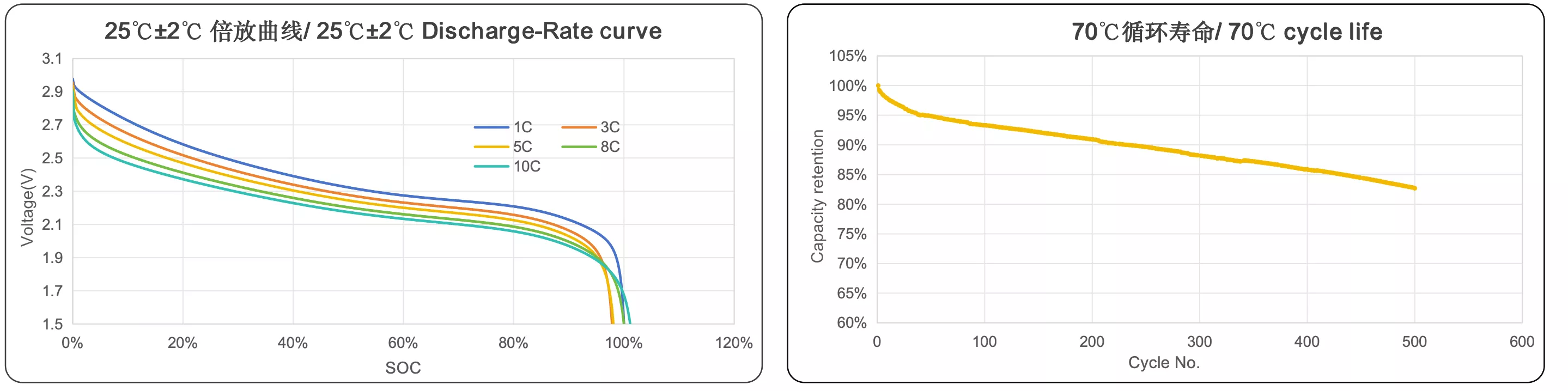

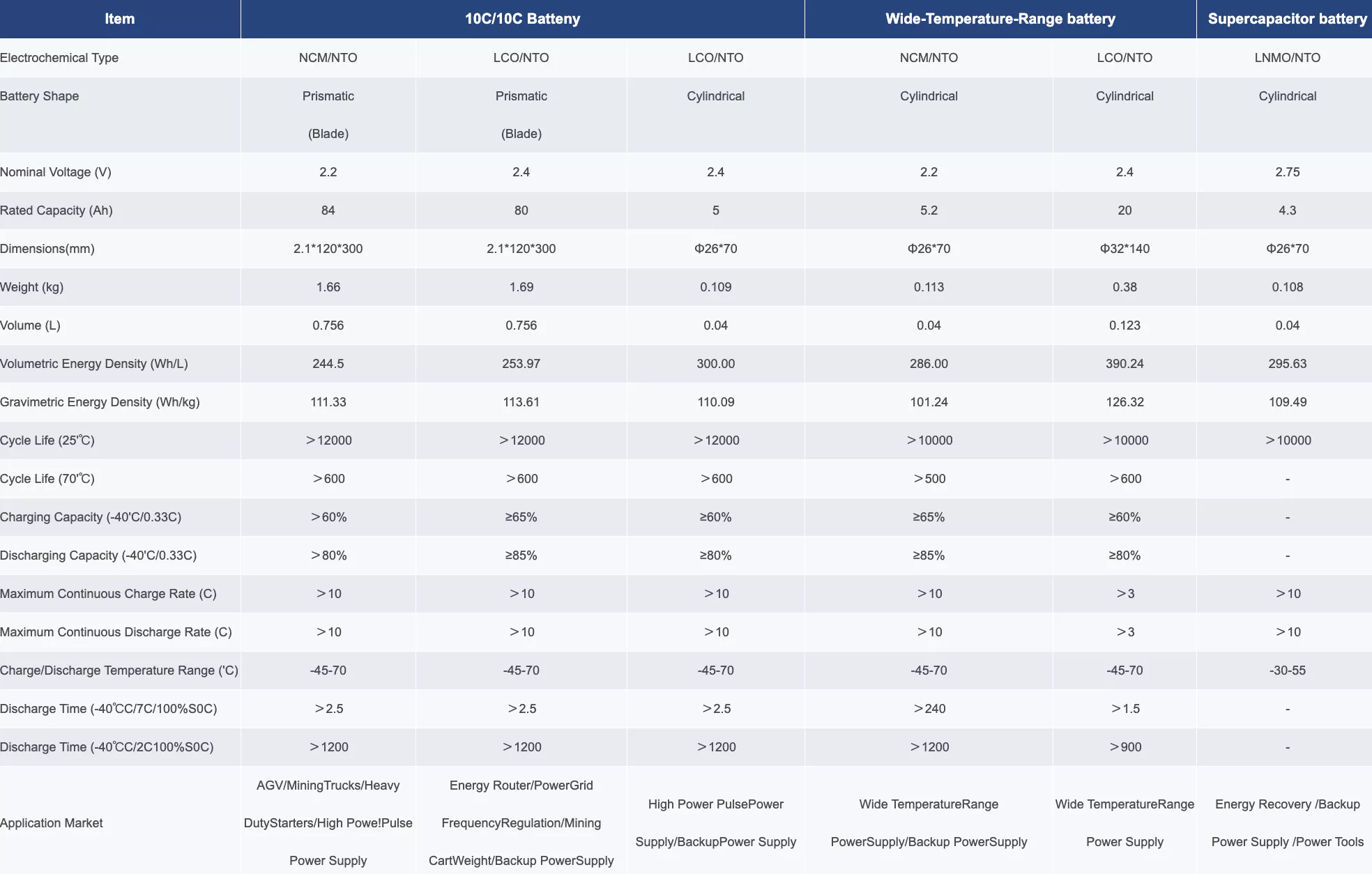

Battery Series Indicators
Application
Solve extreme cold start & instant high-power output
